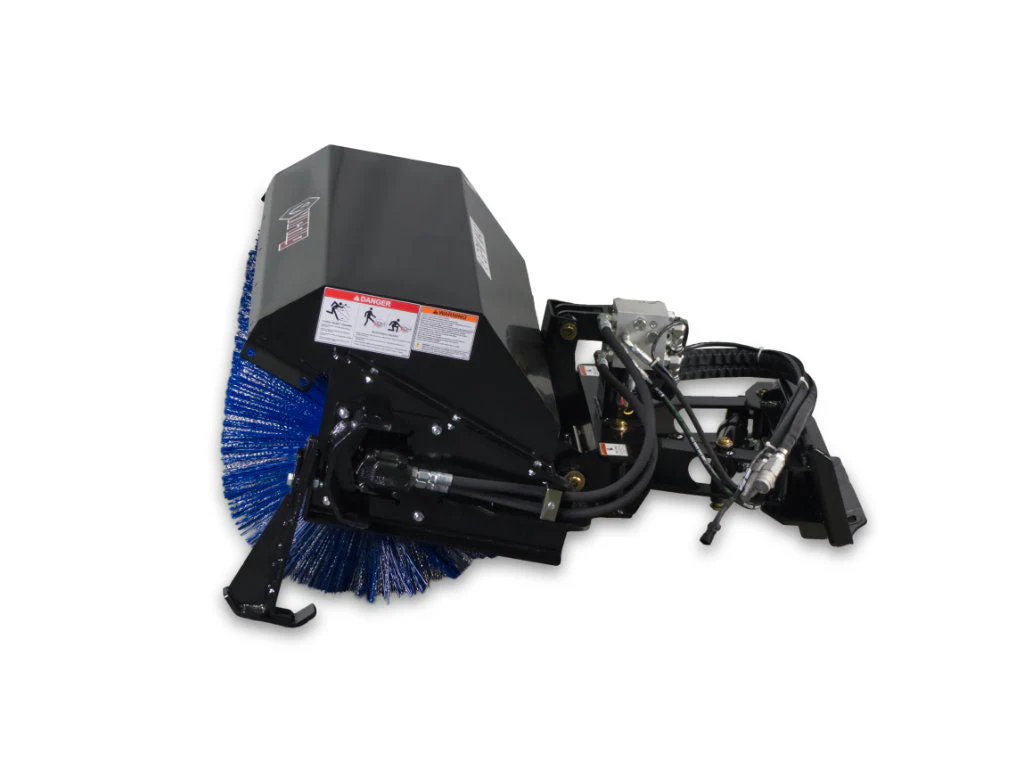

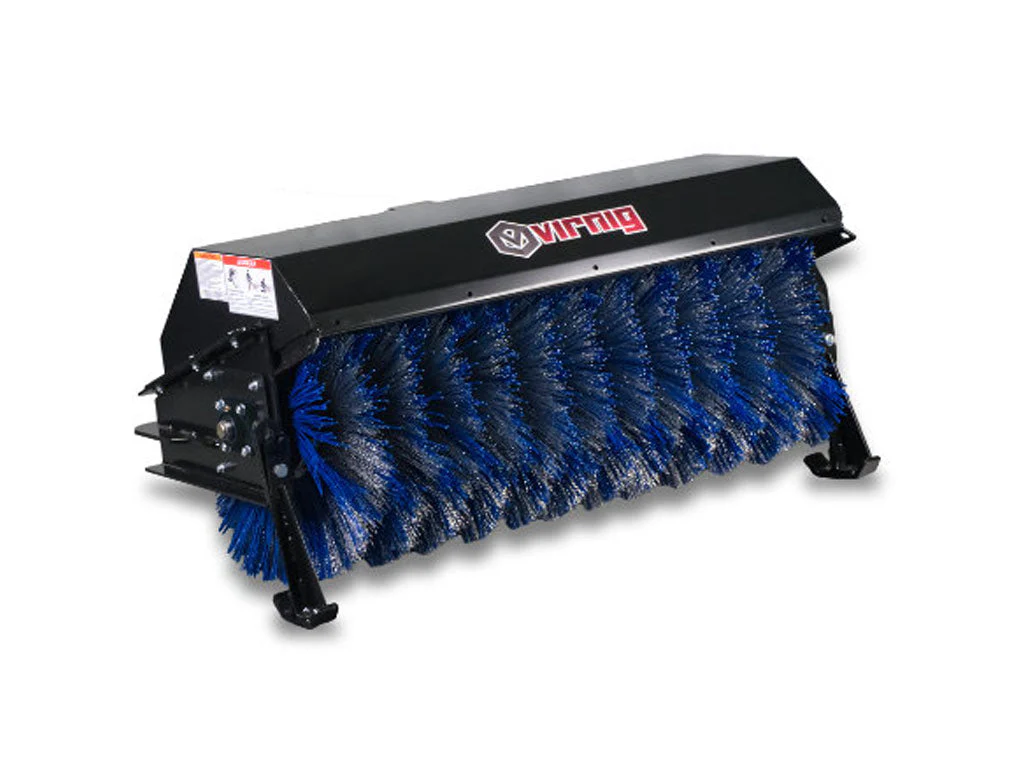

Virnig V20 Angle Broom For Mini Skid Steer

The Virnig V20 Angle Broom for Mini Skid Steer is a purpose-built sweeping attachment designed to help you keep dirt, snow, and debris under control on small to mid-size machines. It’s ideal for job sites, parking lots, and roadways where precise, reliable brushing is essential.

Available Widths: 48" and 60" to match common mini skid steer configurations for efficient coverage
Power & Drive: Direct-drive Eaton® motor with a recessed, guarded design for protection and low-maintenance operation
Self-Centering Swing Linkage: Automatically centers the broom when angled, delivering consistent sweeps across surfaces
Durability & Bearings: Heavy-duty 1.25" greasable bearings stand up to tough debris and frequent use
Wafers & Maintenance: Standard poly/wire wafers; wafers replace easily without disconnecting hydraulic hoses to minimize downtime
Protection & Storage: Flip-down stands shield bristles during storage, extending broom life
Angle Control: Optional hydraulic angle control lets you adjust the broom angle from the cab for quick, in-field changes
Performance & Specs: Sweeping Width (Straight): 48" or 60"; Sweeping Width (Full Angle): 42.8" or 53.5"; Max Broom Angle: 28°; Number of Wafers: 23 (48" model) or 29 (60" model); Approx. Weight: 4,951 lbs (48" model) or 5,301 lbs (60" model)
Compatibility: Compatible with most skid steer loaders, making it a versatile tool for a range of jobs

The V20’s combination of a robust direct-drive motor, an automatic self-centering linkage, and easily replaceable wafers means you get dependable performance with reduced maintenance and downtime. Its reinforced construction, protective motor housing, and bristle-protecting stands are built to endure daily use in challenging environments—from gritty construction yards to snowy lots. For operators seeking convenience, the optional hydraulic angle control adds cab-adjustable precision, so you can tailor the broom angle on the fly without leaving the cab. Whether you’re clearing a parking lot, maintaining a roadway shoulder, or keeping a worksite clean, the Virnig V20 Angle Broom is engineered to deliver consistent, efficient sweeping where you need it most.

MODEL	CAB48	CAB60
Sweeping Width, Straight (Inches)	48.0	60.0
Sweeping Width, Full Angle (Inches)	42.8	53.5
Loader Track Width Coverage, Full Angle (Inches)	38.0	48.0
Overall Width (Inches)	54.3	66.3
Overall Width, Full Angle (Inches)	58.5	68.5
Overall Height / Depth, Straight (Inches)	27.7 / 56.9	27.7 / 56.9
Max Broom Angle (Degrees)	28	28
Number of 26 Inch Diameter Wafers	23	29
Recommended Flow Rate (GPM)	10-18 Standard Flow Only	10-18 Standard Flow Only
Approximate Weight (Pounds)	495¹	530¹
Recommended Loader Capacity	Greater than 500 pounds	Greater than 500 pounds
